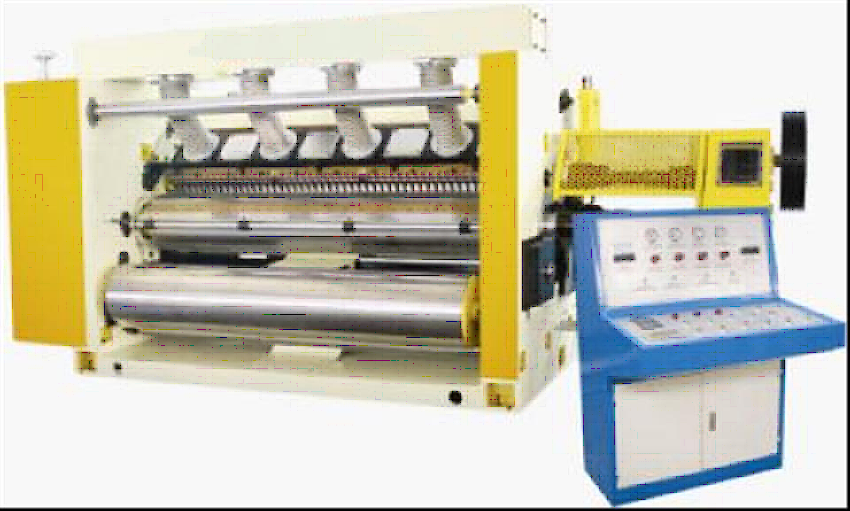

Single Facer with Vacuum Suction
Design Speed: 80m/minute Effective width: 1400mm. Corrugated roller:280mm Drive reducer box with oil immersed type lubricating to reduce noise while the machine is in operation. Corrugating roller, pressure roller and glue rollers are adjusted pneumatically. 2 ply board flow adopts vacuum suction method. Bearings of corrugated and pressure rollers are provided with high temperature lubricating grease. Glue is circulated and supplied to the single facer homogeneous consistent viscosity. The corrugating roller set is made of 52CrMo high quality alloy steel. The hardness is HRC 58 - 60, The glue roller surface is specially made to retain required glue and chrome plated.
Product Name:
Single Facer with Vacuum Suction
Product Description:
Design Speed: 80m/minute Effective width: 1400mm. Corrugated roller:280mm Drive reducer box with oil immersed type lubricating to reduce noise while the machine is in operation. Corrugating roller, pressure roller and glue rollers are adjusted pneumatically. 2 ply board flow adopts vacuum suction method. Bearings of corrugated and pressure rollers are provided with high temperature lubricating grease. Glue is circulated and supplied to the single facer homogeneous consistent viscosity. The corrugating roller set is made of 52CrMo high quality alloy steel. The hardness is HRC 58 - 60, The glue roller surface is specially made to retain required glue and chrome plated.
Specifications
  • Corrugated roll: 280mm

  • Max mechanical speed: 80m/min

  • Width: 1600mm

  • Suction feeding

  • Driving by gear box and universal joints

  • Heating temparature: 160-200°C

  • Steam Pressure: 0.8-1.3 Mpa

  • Flute shape: UV

  • Pneumatic control for upper corrugated roll, pressure roll, glue roll

  • Use heat resistant grease for bearing of corrugated roll and pressure roll

  • corrugated roll: 52CrMo ally steel, surface grinded and heat treated to harness HRC58-60

  • Glue roll use anilox roll and chrome plated

  • Pressure roll: 324mm, Glue roll: 215mm, Preheating roll: 320mm

  • Main drive: 7.5KW

  • Suction motor; 7.5KW
